ERW Tube Mill High Frequency Tube Mill Production Line for Sale

Description:

High Frequency ERW Tube & Pipe Mill Machine

ERW Tube & Pipe Mill Machine Series are the specialized equipment to produce high-frequency straight seam welded pipe and tube for structural pipe and industrial pipe with Φ4.0~Φ273.0mm and the wall thickness δ0.2~12.0 mm.

The whole line can reach high precision and high speed through optimization design, best materials choice, and accurate fabrication and rolls. Within a suitable range of pipe diameter and wall thickness, pipe production speed is adjustable.


  • Color: Customized
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 100 Piece/Pieces per Month
  • Product Detail

    Product Tags

    High Frequency ERW Tube & Pipe Mill Machine

          ERW Tube & Pipe Mill Machine Series are the specialized equipment to produce high-frequency straight seam welded pipe and tube for structural pipe and industrial pipe with Φ4.0~Φ273.0mm and the wall thickness δ0.2~12.0 mm.

          The whole line can reach high precision and high speed through optimization design, best materials choice, and accurate fabrication and rolls. Within a suitable range of pipe diameter and wall thickness, pipe production speed is adjustable.

    • FLOW CHART

    {Steel strips} →→Double-head un-coiler →→Strip-head Shearer & TIG Butt welder station →→ HORIZONTAL SPIRAL ACCUMULATOR →→Forming M/C (Main driving unit① +Flattening Entry unit + Breakdown zone + Fin pass zone + Seam guide unit + High-frequency induction welding system + Squeeze welding roller unit + Outside scarfing unit + Zinc spray patching system for welded seam(optional) + Horizontal ironing stand) + Emulsion water Cooling section + Sizing M/C (Main driving unit② +Sizing zone + Speed testing unit + Turk straightener + Vertical pull-out frame) →→ NC Cold flying saw under computer control→→Run-out table →→{Stacking & packing section(optional)

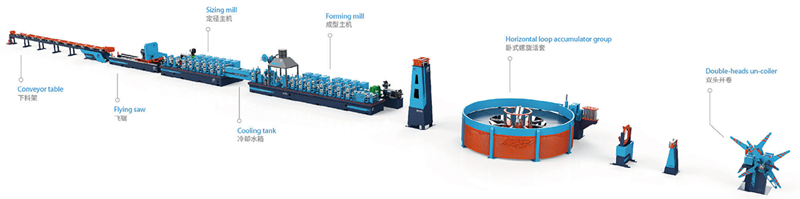

    flow chart

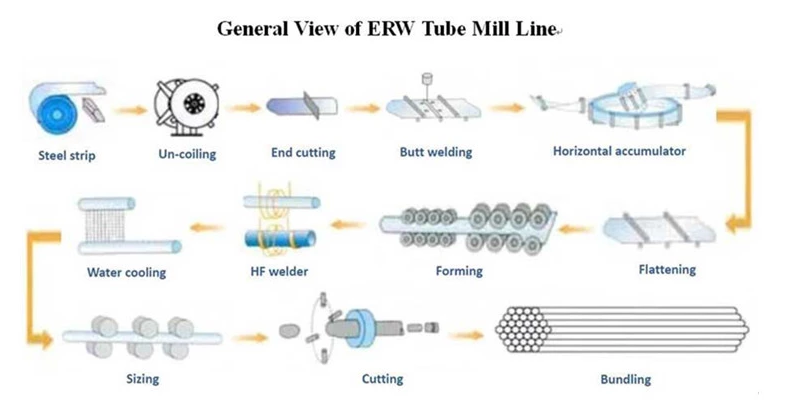

    ERW Tube Mill

    • Features

    1. Accumulating more than 20 years of professional manufacturing experience, SHANGHAI COREWIRE INDUSTRY CO., LTD. specialized in supplying TM-12~273 ERW tube mill machine efforts quality improvement and technological researching.

    2. Meanwhile, the R&D center featured The ERW tube mill with high-strength design, material selection, precision machining, stable operation, and energy conservation.

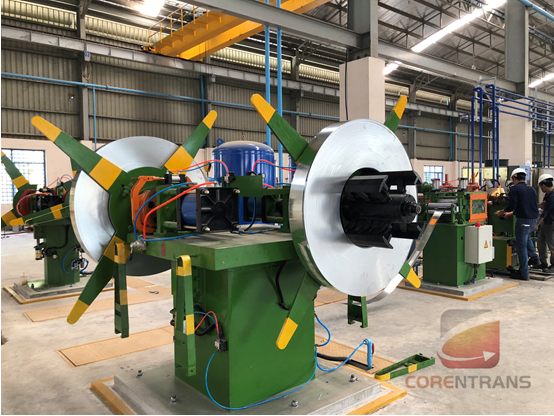

    tube mill

    •  Application:
    The products are mainly pipes and tubes used in petroleum, petrochemical, construction, shipbuilding, car making, electric power, mining, coal, machinery manufacturing industries.

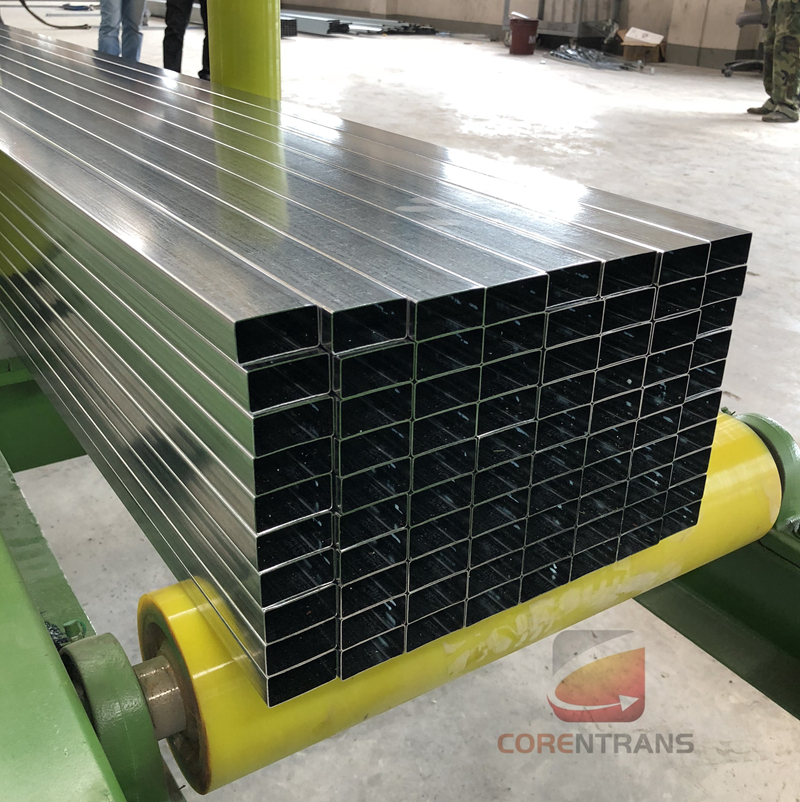

    tube application

    • Parameter

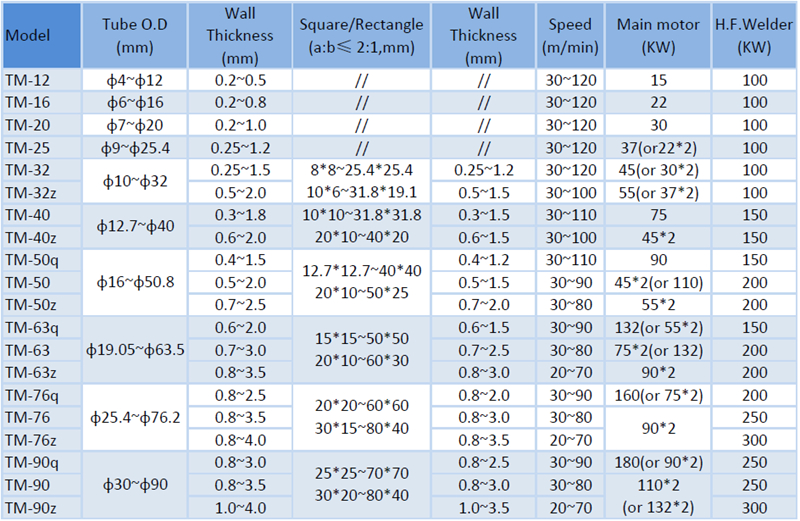

    tube mill parameter-1

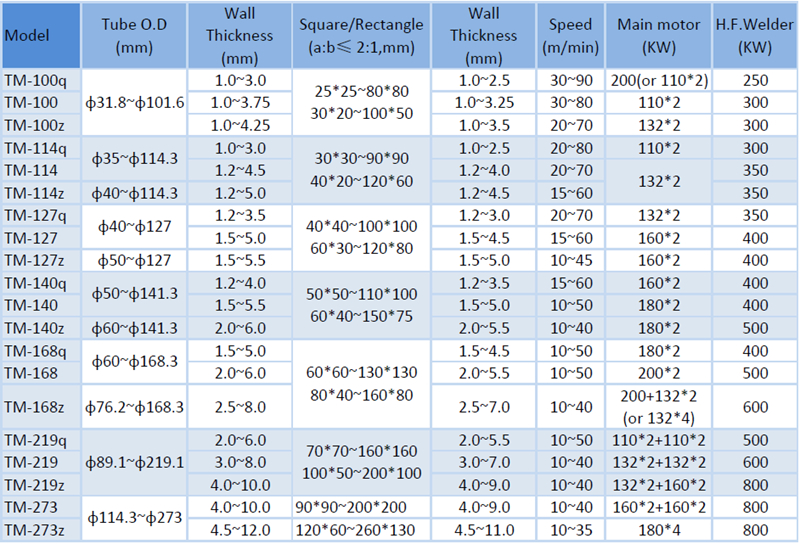

    tube mill parameter-2
