Introduction

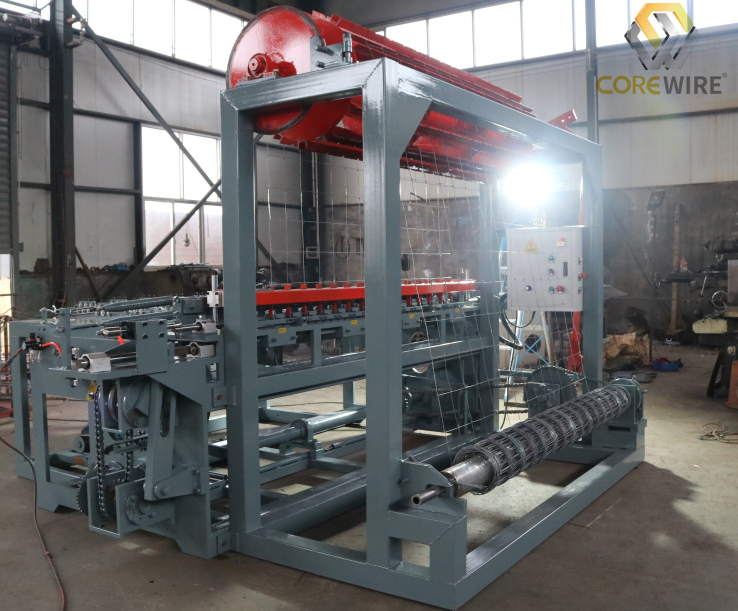

Automatic Cattle Mesh Making Machine, also called Grassland Fence Mesh Making Machine, can automatically weave the weft wire and wrap wire together. The grassland fence produced has the features of innovative structure, firmness, precision and reliable property. The productive capacity can be 150 m/h. We can make according to the custom’s special requirement.
Technical Parameters
|
No |
Description |
Parameter |
|
|
Model |
HT-2400 |
|
Wire diameter- Inner |
1.8 ~ 3 mm |
|
Wire diameter- Outer |
1.8 ~ 3.5 mm |
|
Mesh aperture |
200*2+150*3+160*11+75*6 (or customized) |
|
|
Mesh width |
2400 mm |
|
Speed |
40-50 rows/min |
|
|
Motor |
2.2KW |
|
|
Voltage |
415V 50Hz |
|
|
Weight |
3500 kg |
|
|
Dimension |
3700*3000*2400 mm |
|
Production Output |
150 m/h |
